STILL EK-X

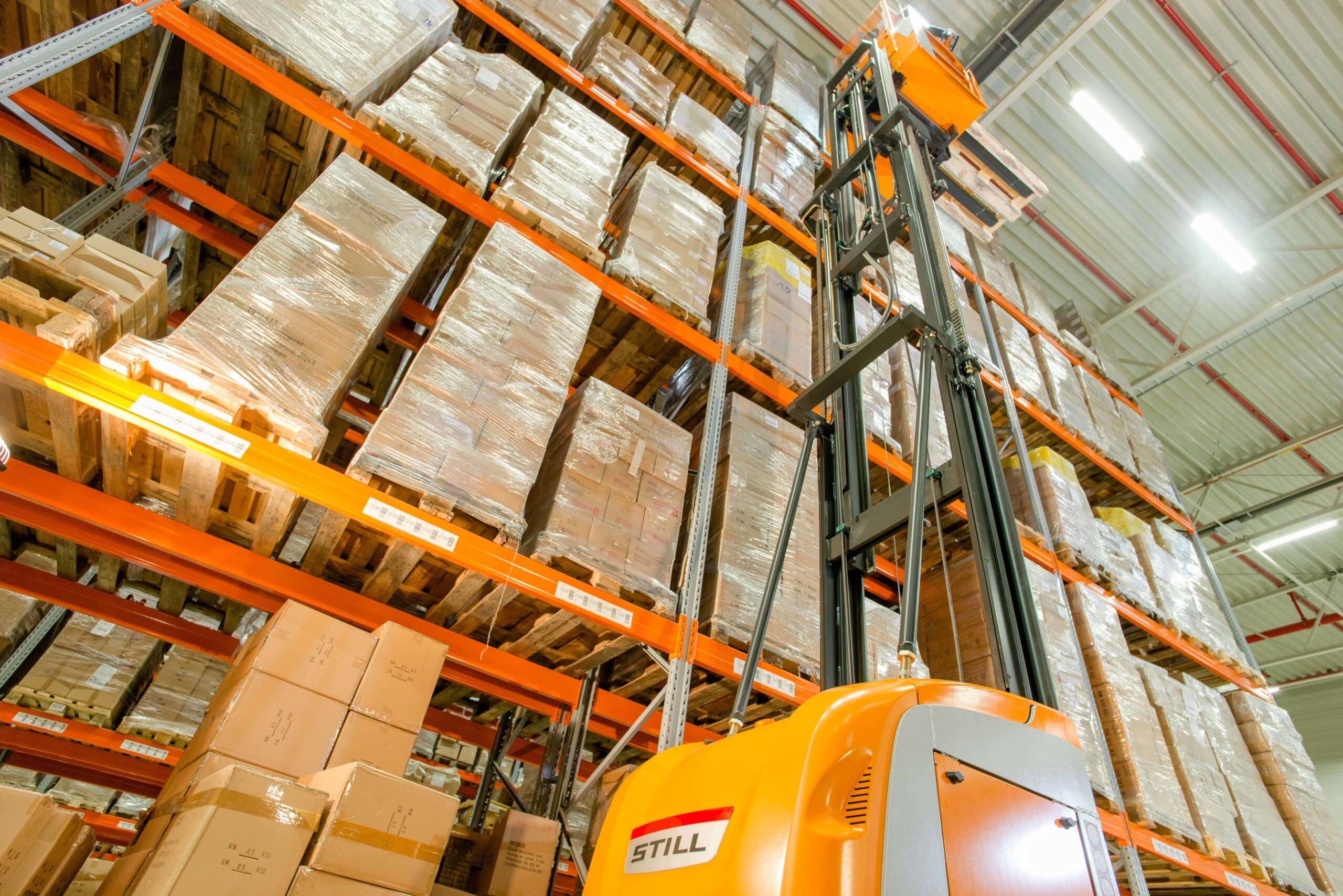

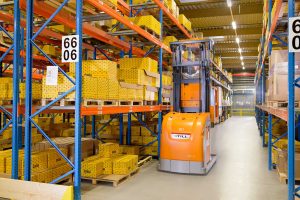

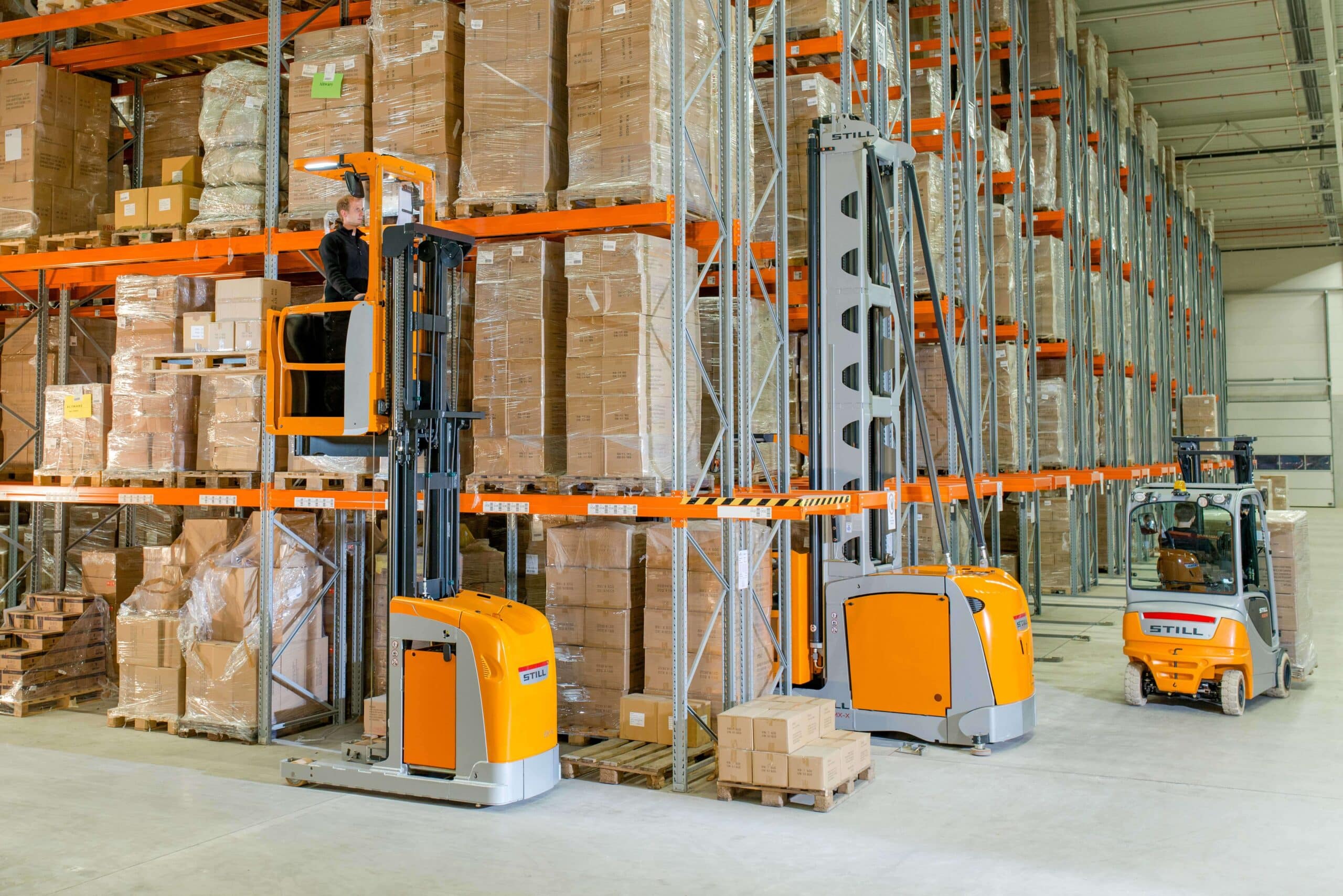

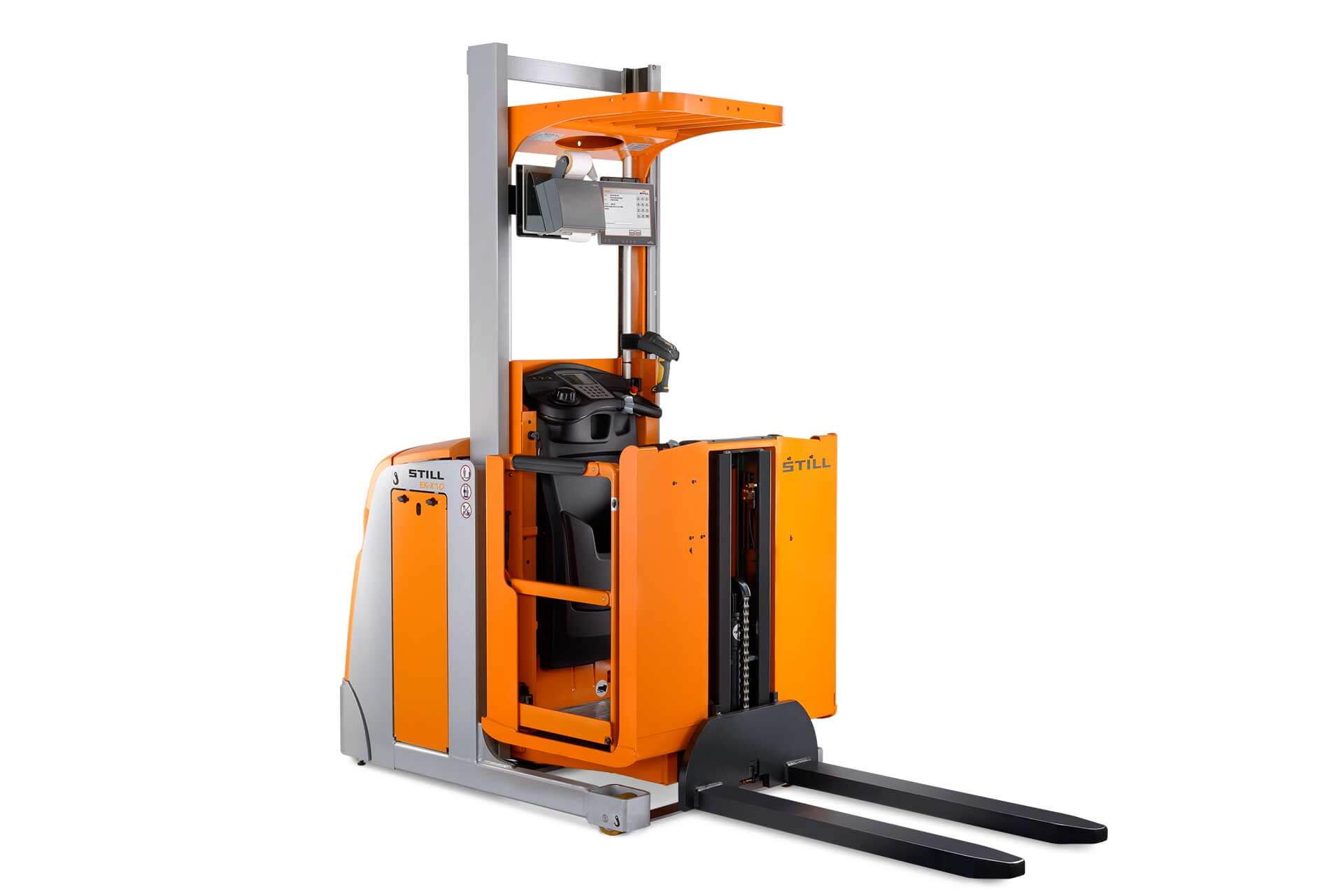

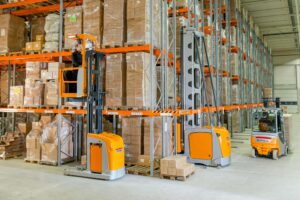

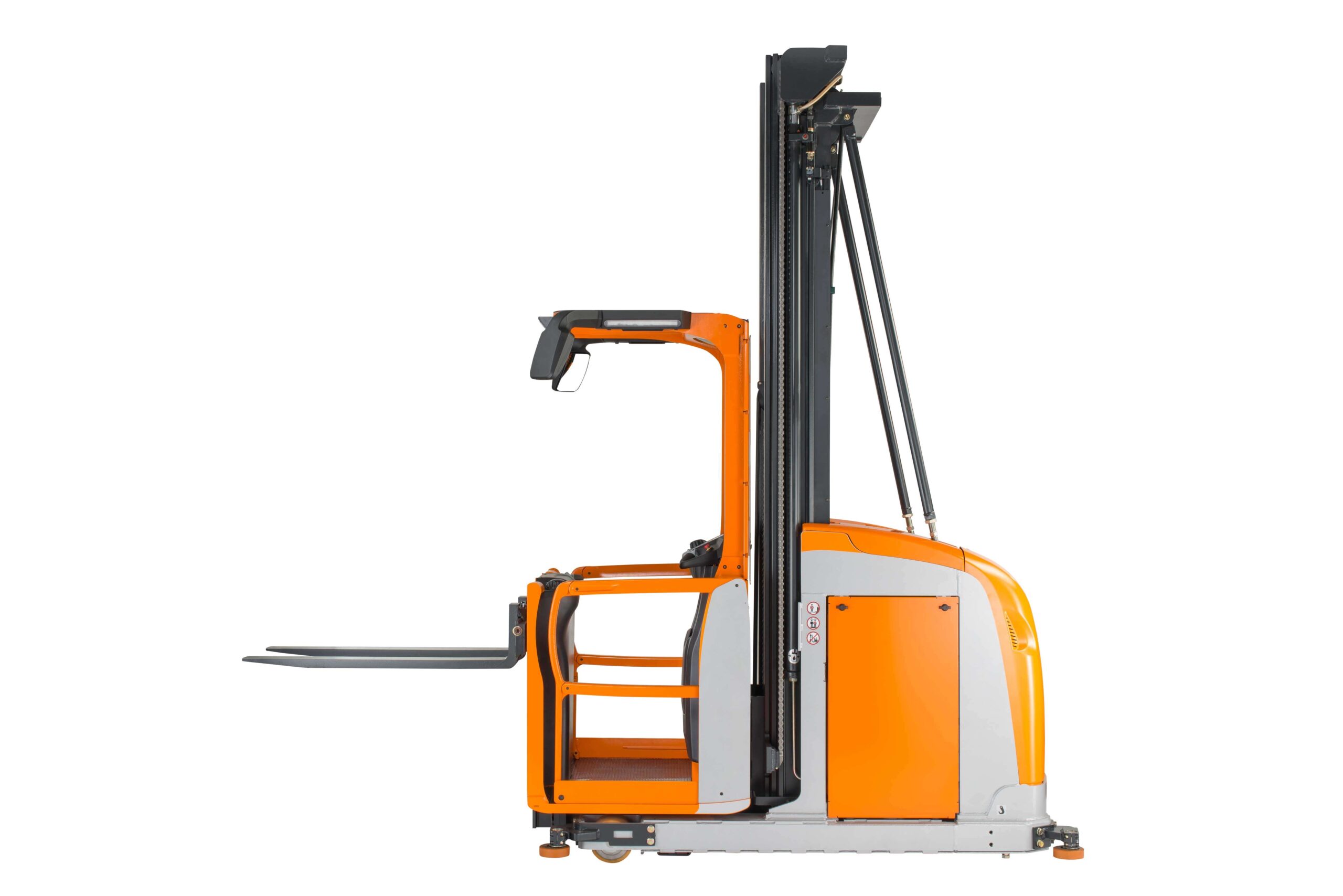

The infamous STILL EK-X, nominated for International Forklift of the year, It’s the Prince of Pickers and Nobility in any narrow-aisle warehouse: the EK-X vertical order picker sets the benchmark in terms of performance, picking height, residual load capacity, functionality and ergonomics. The EK-X forges ahead into new dimensions of efficient goods handling with driving speeds up to 13 km/h and lifting speeds up to 0.4 m/s. Thanks to the OPTISPEED system, this compact warehouse helper is always on the move at maximum speed – without impairing safe driving. Other features include an excellent field of view and a maximum pick height of 12 meters – outstanding in the truest sense of the word – as well as a roomy, shock-absorbing driver’s cabin. In short: if you want the most efficient, user-friendly picking warehouse management, you can’t do without an EK-X. Moreover, the modular system allows the optimum EK-X to be custom-built for every warehouse.

Power

      • Maintenance-free 3-phase drive unit, 24 V or 48 V
      • Effective goods handling due to very high driving and lifting speeds (13 km/h and 0.4 m/s)
      • Enough energy for multi-shift operations thanks to battery capacities up to 1240 Ah (24 V) or 930 Ah (48 V)
      • Powerful auxiliary lift for efficient order picking

Precision

        • Sensitive operation and stepless control of lift speed thanks to stateof- the-art proportional valve technology
        • Power-optimized driving speeds through accurate height sensing
        • Maximum possible operating speed for each load weight thanks to the OPTISPEED-System
        • Easier workload through semiautomatic approach to shelf with OPTISPEED 4.0

Ergonomics

          • Quick, safe personnel entry and exit thanks to generously sized, lowlevel entry area
          • High degree of movement freedom due to roomy driver’s cabin
          • Shock-absorbing floor with integrated drive switch guarantees relaxed working
          • Effective working with any body size thanks to low cabin wall and small distance to load carrier
          • Optional tilting side barriers for even easier access to goods
          • Intuitive and optionally height-adjustable control panel for ergonomic work
          • Wide variety of equipment options for the driver’s cabin (e. g. attachment system for terminals etc., storage option, leaning support, 12 volt power socket)

Safety

            • Safe handling in a very narrow aisle with mechanical or inductive guidance

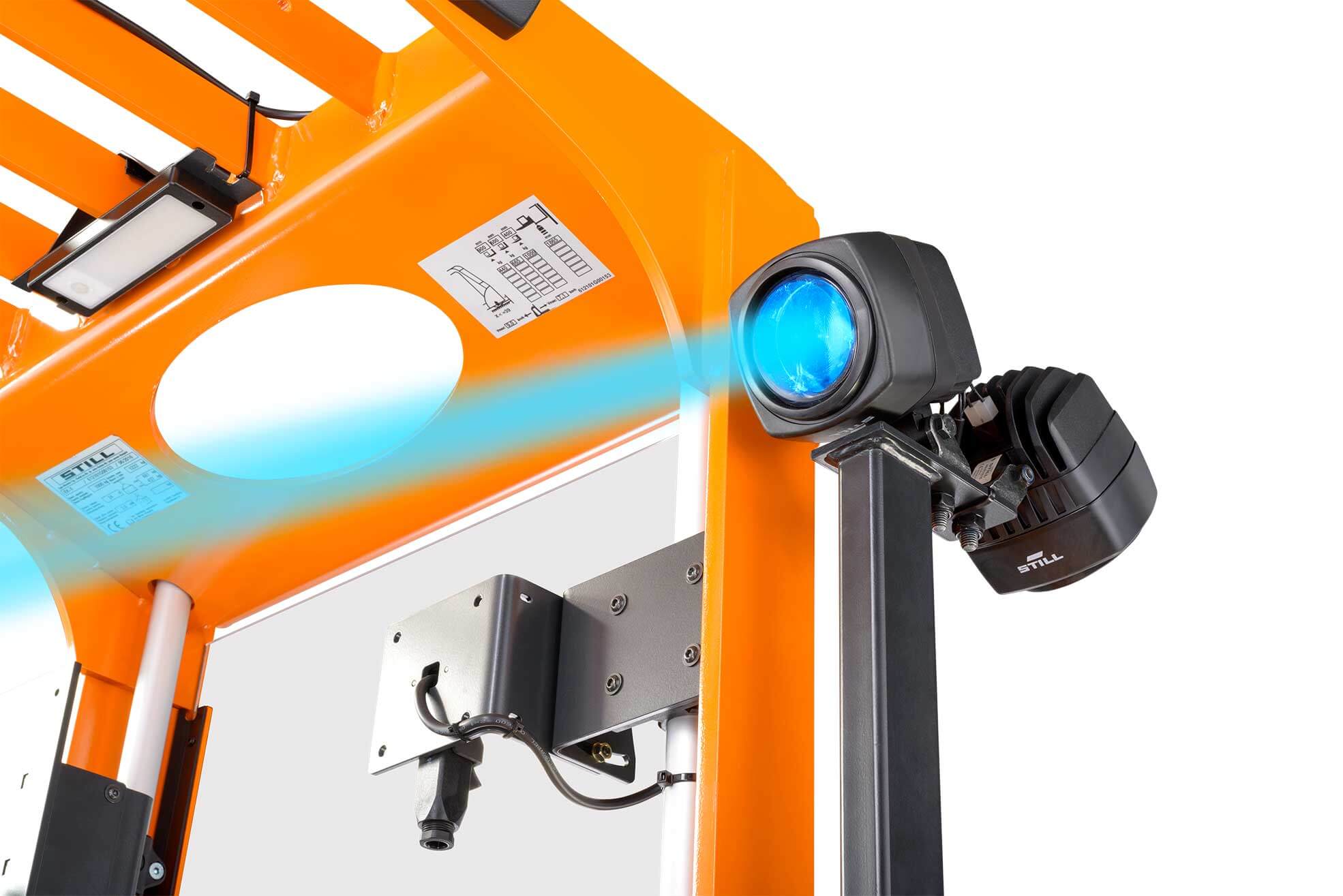

            • Long-life, energy-saving LED headlights for optimum visibility
            • Optional OPTISAFE system gives optimum support when navigating and operating the vehicle in sensitive warehouse areas
            • Safe operation through sensor-controlled two-handed operation
            • Faster servicing due to easily accessible service points

Environmental responsibility

              • Longer operating time and optimum use of resources through energy recovery during braking and lowering operations
              • Blue-Q efficiency mode saves up to 10 percent energy at the push of a button without sacrificing power
              • 90 percent of all the materials used are recyclable
